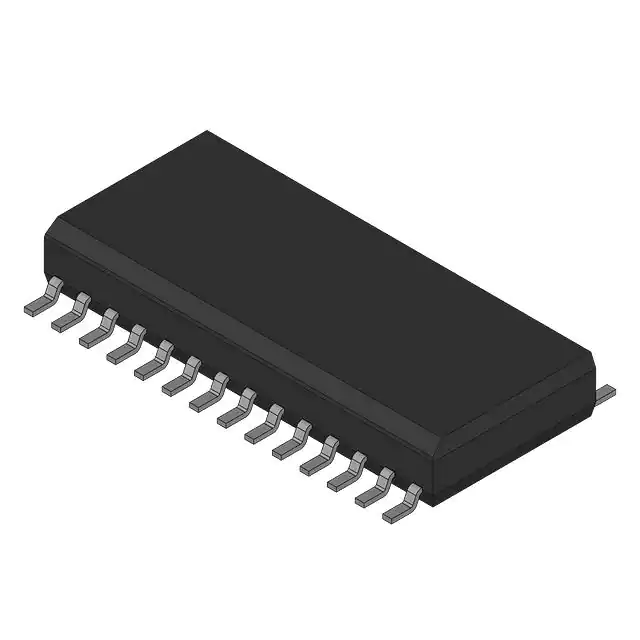

| Part Number | BTM7741GXUMA1 | BTM7751GXUMA1 | BTM7740GXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Obsolete | Last Time Buy |
| Output Configuration | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | Logic | Logic | Logic |
| Load Type | Inductive | Inductive | Inductive |
| Technology | DMOS | DMOS | DMOS |
| Rds On (Typ) | 100mOhm LS, 110mOhm HS | 45mOhm LS, 70mOhm HS | 100mOhm LS, 110mOhm HS |
| Current - Output / Channel | - | - | - |
| Current - Peak Output | 10A | 14A | 8A |
| Voltage - Supply | 1.8V ~ 42V | 1.8V ~ 42V | 1.8V ~ 42V |
| Voltage - Load | 1.8V ~ 42V | 1.8V ~ 42V | 1.8V ~ 42V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Status Flag | Status Flag | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO | Open Load Detect, Over Temperature, Short Circuit, UVLO | Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-28 | PG-DSO-28 | PG-DSO-28 |
