Infineon Technologies-BSZ0905PNSATMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	8.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	1.9V @ 105µA
Gate Charge (Qg) (Max) @ Vgs:	43.2 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	3190 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	69W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TDSON-8
Package / Case:	8-PowerTDFN

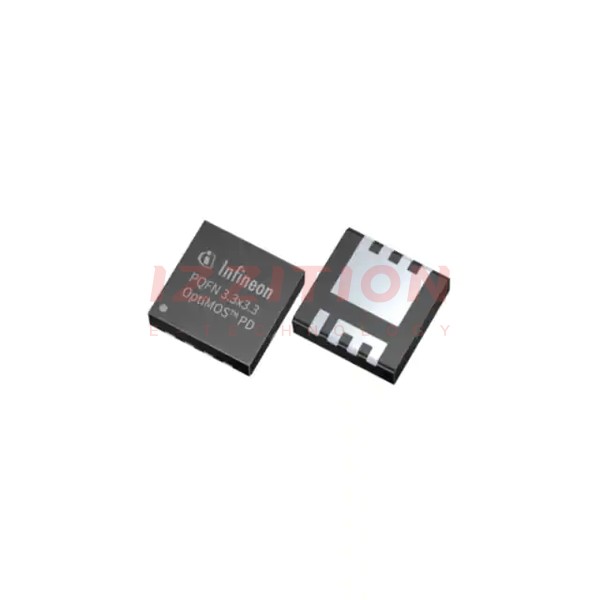

Infineon Technologies BSZ0905PNSATMA1
