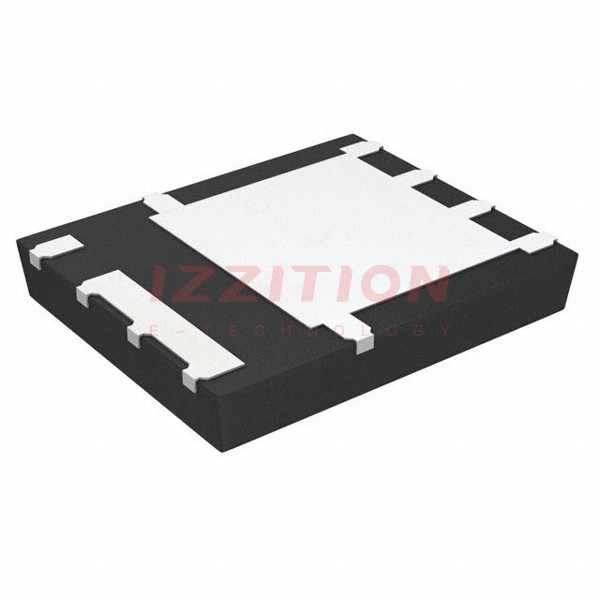

| Part Number | BSZ0704LSATMA1 | BSZ0804LSATMA1 | BSZ0702LSATMA1 | BSZ0703LSATMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 100 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 40A (Tc) | 11A (Ta), 40A (Tc) | 17A (Ta), 40A (Tc) | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9.9mOhm @ 20A, 10V | 9.6mOhm @ 20A, 10V | 4mOhm @ 20A, 10V | 6.5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 14µA | 2.3V @ 36µA | 2.3V @ 36µA | 2.3V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.6 nC @ 4.5 V | 15 nC @ 4.5 V | 22 nC @ 4.5 V | 13 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 30 V | 2100 pF @ 50 V | 3100 pF @ 30 V | 1800 pF @ 30 V |
| FET Feature | - | - | - | Standard |
| Power Dissipation (Max) | 2.1W (Ta), 36W (Tc) | 2.1W (Ta), 69W (Tc) | 2.1W (Ta), 69W (Tc) | 46W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TDSON-8 FL | PG-TDSON-8 FL | PG-TDSON-8 FL | PG-TSDSON-8-26 |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
