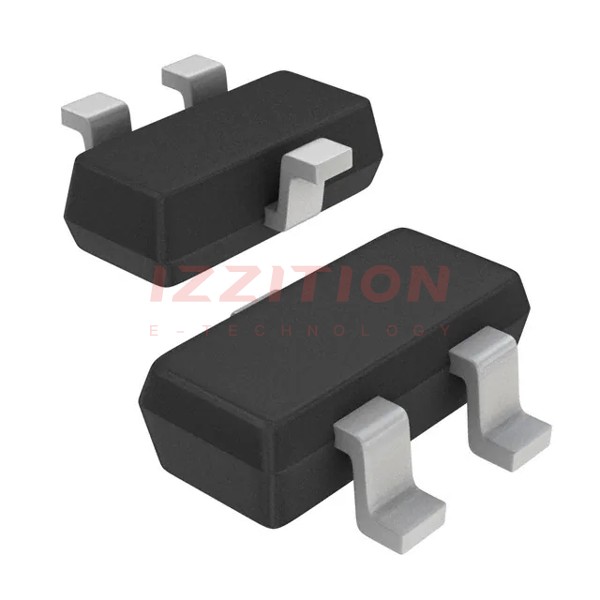

| Part Number | BSR315PL6327HTSA1 | BSR316PL6327HTSA1 | BSP315PL6327HTSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 100 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 620mA (Ta) | 360mA (Ta) | 1.17A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 800mOhm @ 620mA, 10V | 1.8Ohm @ 360mA, 10V | 800mOhm @ 1.17A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 160µA | 1V @ 170µA | 2V @ 160µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 10 V | 7 nC @ 10 V | 7.8 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 176 pF @ 25 V | 165 pF @ 25 V | 160 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 500mW (Ta) | 500mW (Ta) | 1.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-SC59-3 | PG-SC59-3 | PG-SOT223-4-21 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-261-4, TO-261AA |
