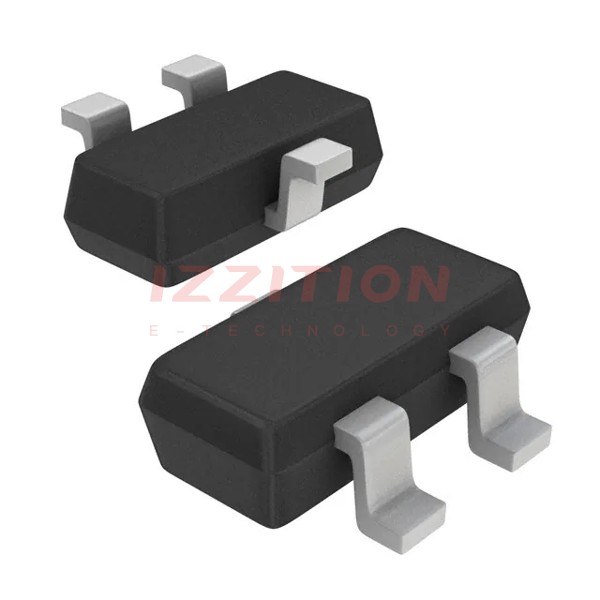

| Part Number | BSR302NL6327HTSA1 | BSR802NL6327HTSA1 | BSR202NL6327HTSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.7A (Ta) | 3.7A (Ta) | 3.8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 1.8V, 2.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 3.7A, 10V | 23mOhm @ 3.7A, 2.5V | 21mOhm @ 3.8A, 4.5V |
| Vgs(th) (Max) @ Id | 2V @ 30µA | 750mV @ 30µA | 1.2V @ 30µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.6 nC @ 5 V | 4.7 nC @ 2.5 V | 8.8 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±8V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 750 pF @ 15 V | 1447 pF @ 10 V | 1147 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 500mW (Ta) | 500mW (Ta) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-SC59-3 | PG-SC59-3 | PG-SC59-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
