Infineon Technologies-BSP320SH6433XTMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	2.9A (Tj)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	120mOhm @ 2.9A, 10V
Vgs(th) (Max) @ Id:	4V @ 20µA
Gate Charge (Qg) (Max) @ Vgs:	9.3 nC @ 7 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	340 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1.8W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

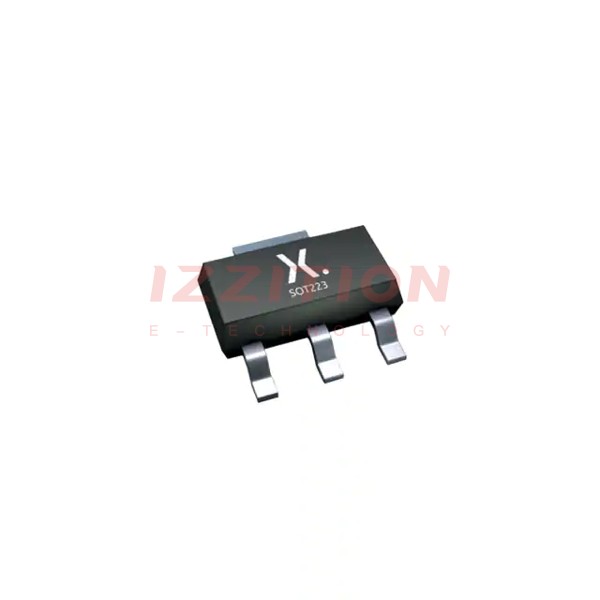

Supplier Device Package:	SOT-223
Package / Case:	TO-261-4, TO-261AA

Infineon Technologies BSP320SH6433XTMA1
