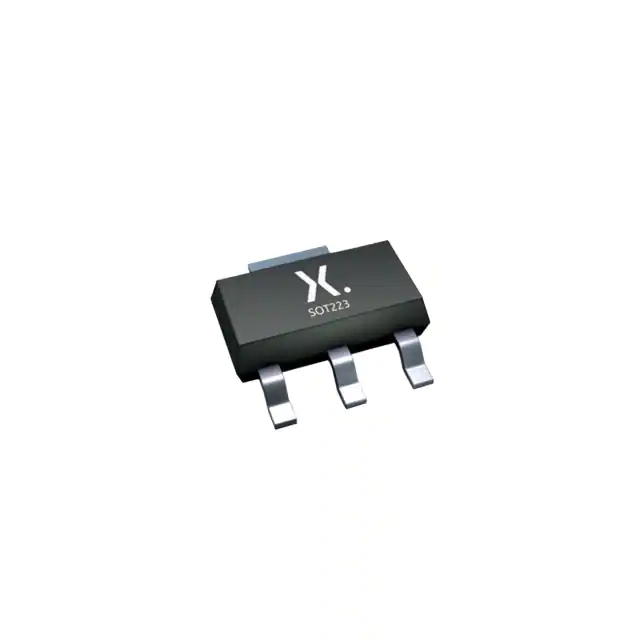

| Part Number | BSP296NL6327HTSA1 | BSP296L6327HTSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) | 1.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 1.2A, 10V | 700mOhm @ 1.1A, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 100µA | 1.8V @ 400µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.7 nC @ 10 V | 17.2 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 152.7 pF @ 25 V | 364 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.8W (Ta) | 1.79W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-SOT223-4 | PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
