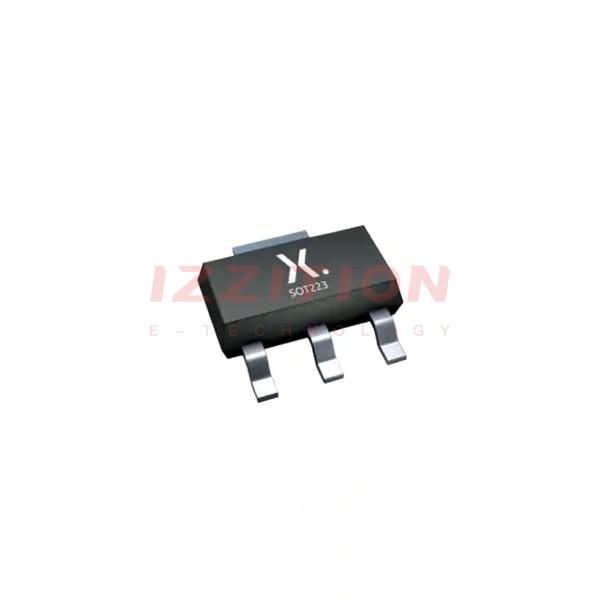

| Part Number | BSP135H6433XTMA1 | BSP125H6433XTMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 120mA (Ta) | 120mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 0V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 45Ohm @ 120mA, 10V | - |
| Vgs(th) (Max) @ Id | 1V @ 94µA | 2.3V @ 94µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.9 nC @ 5 V | 6.6 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 146 pF @ 25 V | 150 pF @ 25 V |
| FET Feature | Depletion Mode | - |
| Power Dissipation (Max) | 1.8W (Ta) | 1.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-223 | PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
