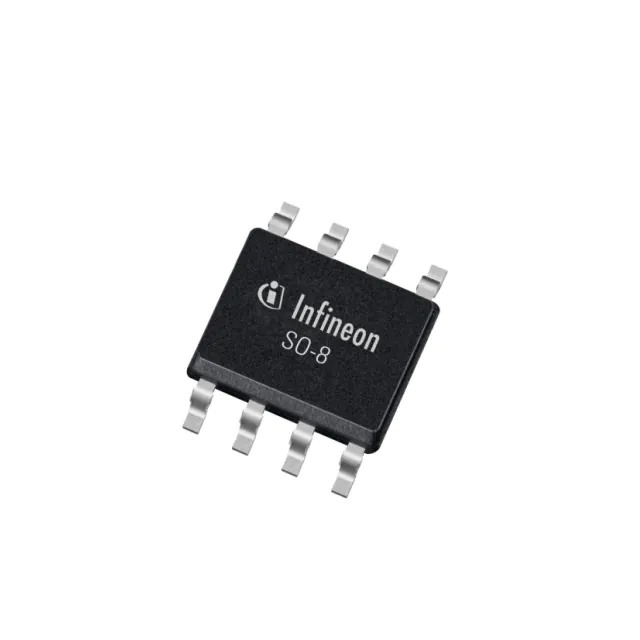

| Part Number | BSO615CGXUMA1 | BSO615NGXUMA1 | BSO615CGHUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete |
| FET Type | N and P-Channel | 2 N-Channel (Dual) | N and P-Channel |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V | 60V | 60V |
| Current - Continuous Drain (Id) @ 25°C | 3.1A (Ta), 2A (Ta) | 2.6A | 3.1A, 2A |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 3.1A, 10V, 300mOhm @ 2A, 10V | 150mOhm @ 2.6A, 4.5V | 110mOhm @ 3.1A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 20µA, 2V @ 450µA | 2V @ 20µA | 2V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | 22.5nC @ 10V, 20nC @ 10V | 20nC @ 10V | 22.5nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 380pF @ 25V, 460pF @ 25V | 380pF @ 25V | 380pF @ 25V |
| Power - Max | 2W (Ta) | 2W (Ta) | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-8 | PG-DSO-8 | PG-DSO-8 |
