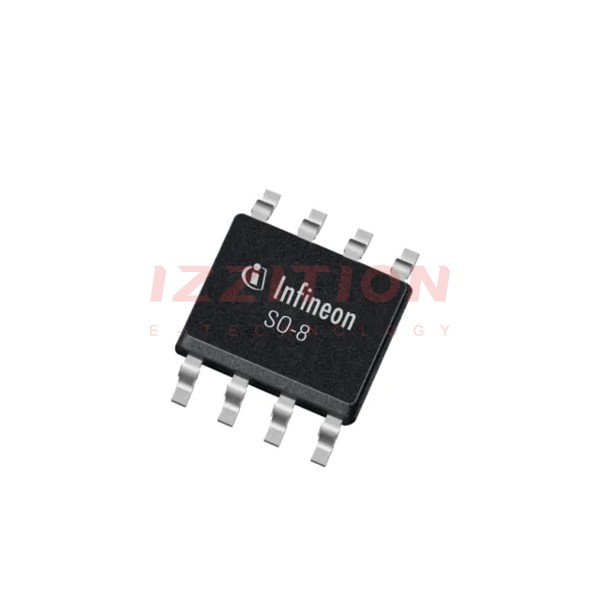

| Part Number | BSO613SPVGXUMA1 | BSO613SPVGHUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 3.44A (Ta) | 3.44A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 3.44A, 10V | 130mOhm @ 3.44A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V | 30 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 875 pF @ 25 V | 875 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.5W (Ta) | 2.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-8-6 | PG-DSO-8 |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
