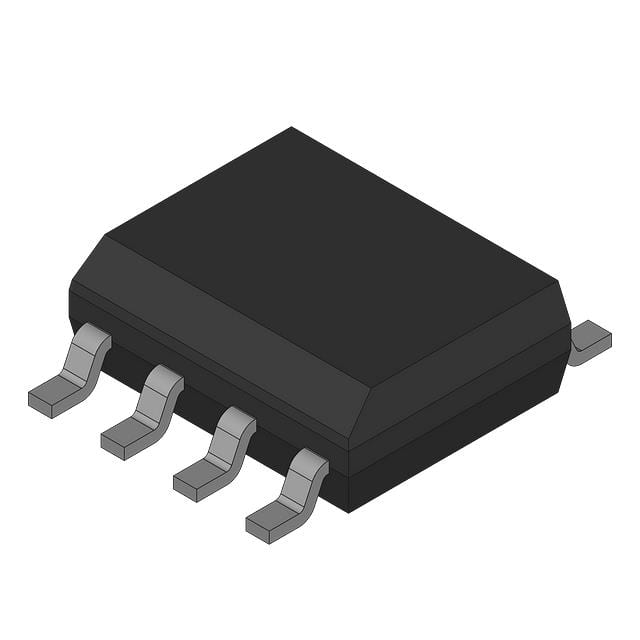

| Part Number | BSO612CVG | BSO612CV |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete |
| FET Type | N and P-Channel | N and P-Channel |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 60V | 60V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta), 2A (Ta) | 3A, 2A |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 3A, 10V, 300mOhm @ 2A, 10V | 120mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 20µA, 4V @ 450µA | 4V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | 15.5nC @ 10V, 16nC @ 10V | 15.5nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 340pF, 400pF @ 25V | 340pF @ 25V |
| Power - Max | 2W (Ta) | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-8 | PG-DSO-8 |
