Infineon Technologies-BSO330N02KG - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	5.4A
Rds On (Max) @ Id, Vgs:	30mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id:	1.2V @ 20µA
Gate Charge (Qg) (Max) @ Vgs:	4.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	730pF @ 10V
Power - Max:	1.4W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	PG-DSO-8

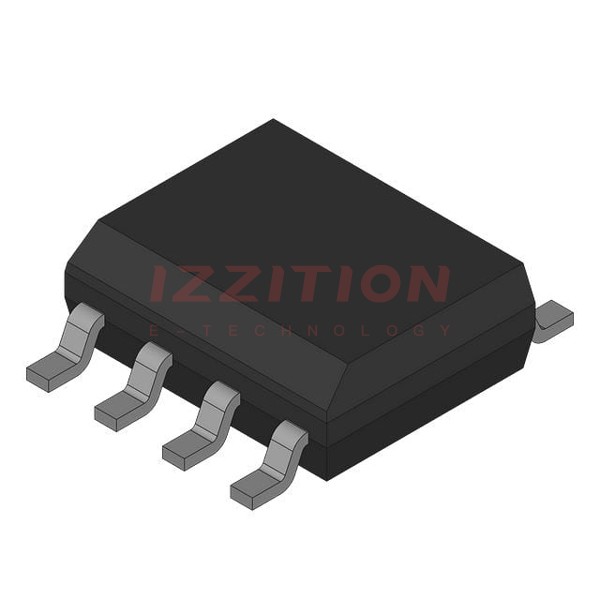

Infineon Technologies BSO330N02KG
