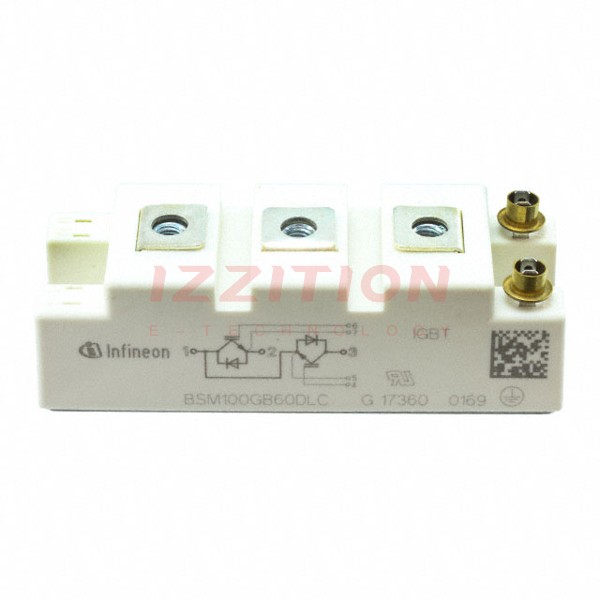

| Part Number | BSM100GB60DLCHOSA1 | BSM150GB60DLCHOSA1 | BSM200GB60DLCHOSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| IGBT Type | - | - | - |
| Configuration | Single | Single | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 130 A | 180 A | 230 A |
| Power - Max | 445 W | 595 W | 730 W |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 100A | 2.45V @ 15V, 150A | 2.45V @ 15V, 200A |
| Current - Collector Cutoff (Max) | 500 µA | 500 µA | 500 µA |
| Input Capacitance (Cies) @ Vce | - | 6.5 nF @ 25 V | 9 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module |
| Supplier Device Package | Module | Module | Module |
