Infineon Technologies-BSL215PL6327 - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	1.5A
Rds On (Max) @ Id, Vgs:	150mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:	1.2V @ 11µA
Gate Charge (Qg) (Max) @ Vgs:	3.55nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	346pF @ 15V
Power - Max:	500mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package:	PG-TSOP6-6

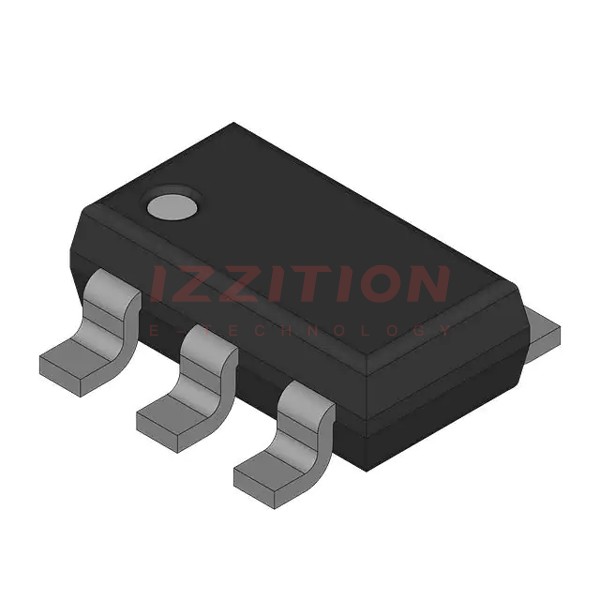

Infineon Technologies BSL215PL6327
