Infineon Technologies-BSL214NL6327 - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	1.5A
Rds On (Max) @ Id, Vgs:	140mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:	1.2V @ 3.7µA
Gate Charge (Qg) (Max) @ Vgs:	0.8nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds:	143pF @ 10V
Power - Max:	500mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

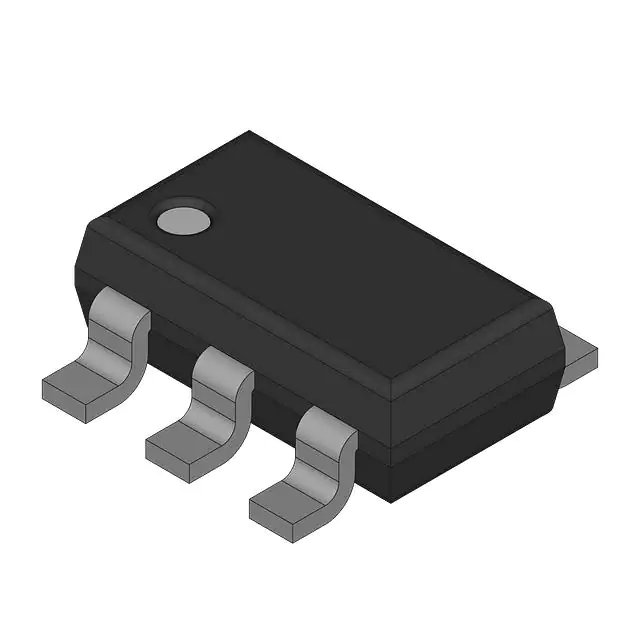

Package / Case:	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package:	PG-TSOP6-6

Infineon Technologies BSL214NL6327
