Infineon Technologies-BSF450NE7NH3XUMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	75 V
Current - Continuous Drain (Id) @ 25°C:	5A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	7V, 10V
Rds On (Max) @ Id, Vgs:	45mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:	3.5V @ 8µA
Gate Charge (Qg) (Max) @ Vgs:	6 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	390 pF @ 37.5 V
FET Feature:	-
Power Dissipation (Max):	2.2W (Ta), 18W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	MG-WDSON-2, CanPAK M™
Package / Case:	3-WDSON

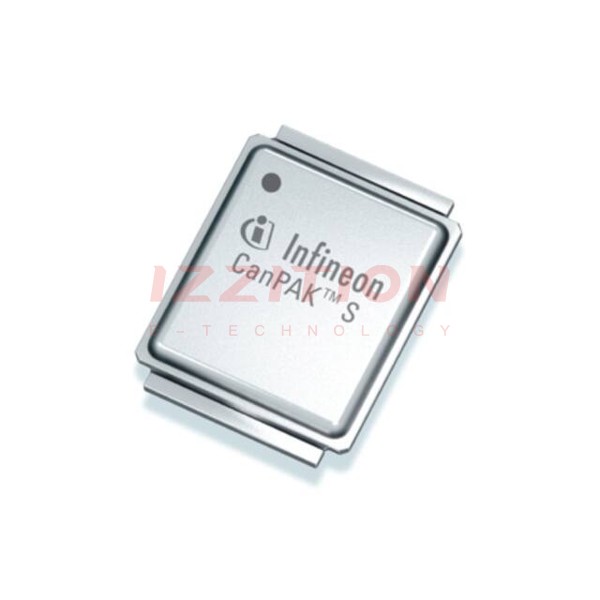

Infineon Technologies BSF450NE7NH3XUMA1
