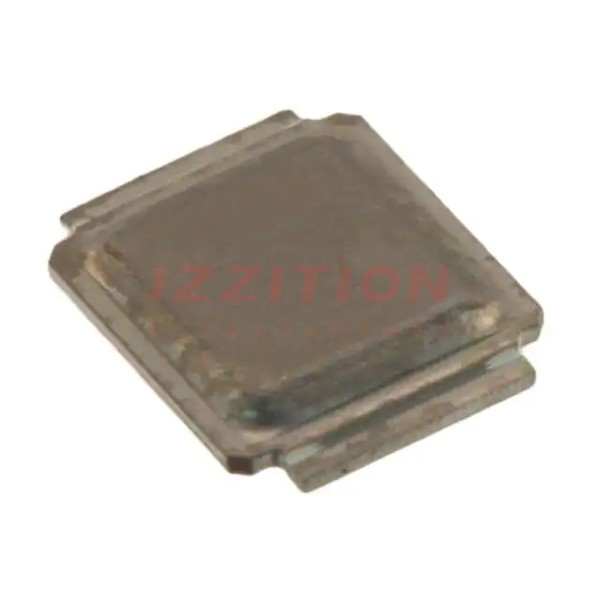

| Part Number | BSF035NE2LQXUMA1 | BSF030NE2LQXUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 69A (Tc) | 24A (Ta), 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 30A, 10V | 3mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V | 23 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1862 pF @ 12 V | 1700 pF @ 12 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.2W (Ta), 28W (Tc) | 2.2W (Ta), 28W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | MG-WDSON-2, CanPAK M™ | MG-WDSON-2, CanPAK M™ |
| Package / Case | 3-WDSON | 3-WDSON |
