Infineon Technologies-BSC220N20NSFDATMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	52A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	22mOhm @ 52A, 10V
Vgs(th) (Max) @ Id:	4V @ 137µA
Gate Charge (Qg) (Max) @ Vgs:	43 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3680 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	214W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TSON-8-3
Package / Case:	8-PowerTDFN

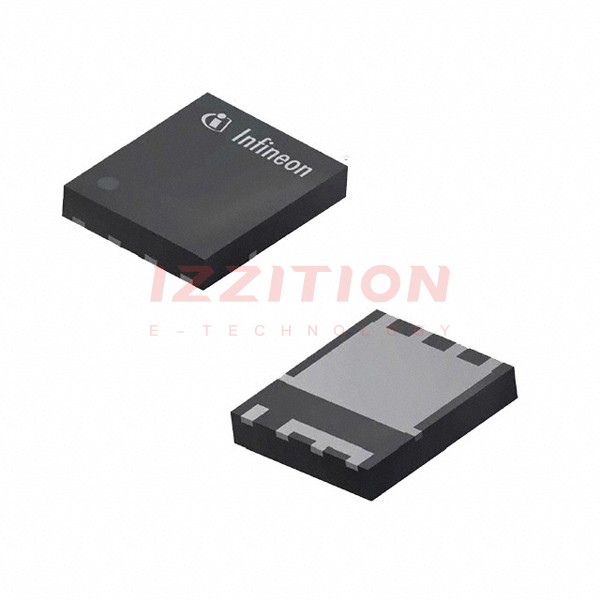

Infineon Technologies BSC220N20NSFDATMA1
