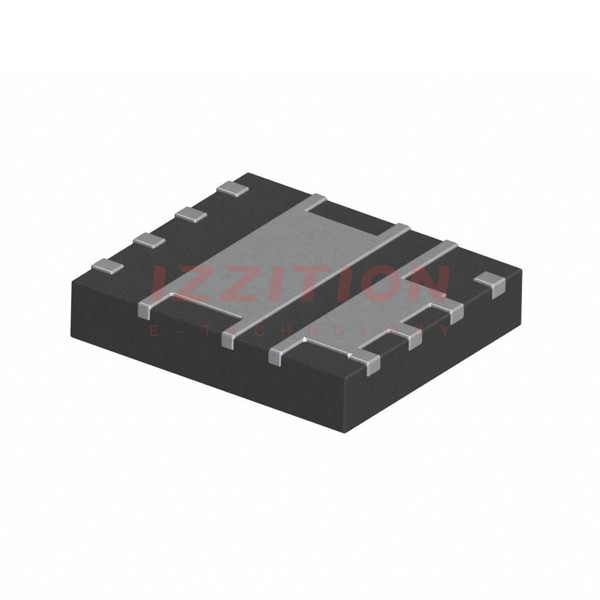

| Part Number | BSC0923NDIATMA1 | BSC0924NDIATMA1 | BSC0921NDIATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate, 4.5V Drive | Logic Level Gate, 4.5V Drive | Logic Level Gate, 4.5V Drive |
| Drain to Source Voltage (Vdss) | 30V | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 17A, 32A | 17A, 32A | 17A, 31A |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 20A, 10V | 5mOhm @ 20A, 10V | 5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10nC @ 4.5V | 10nC @ 4.5V | 8.9nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1160pF @ 15V | 1160pF @ 15V | 1025pF @ 15V |
| Power - Max | 1W | 1W | 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | PG-TISON-8 | PG-TISON-8 | PG-TISON-8 |
