Infineon Technologies-BSC072N03LDGATMA1 - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	11.5A
Rds On (Max) @ Id, Vgs:	7.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	41nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	3500pF @ 15V
Power - Max:	57W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerVDFN
Supplier Device Package:	PG-TDSON-8-4

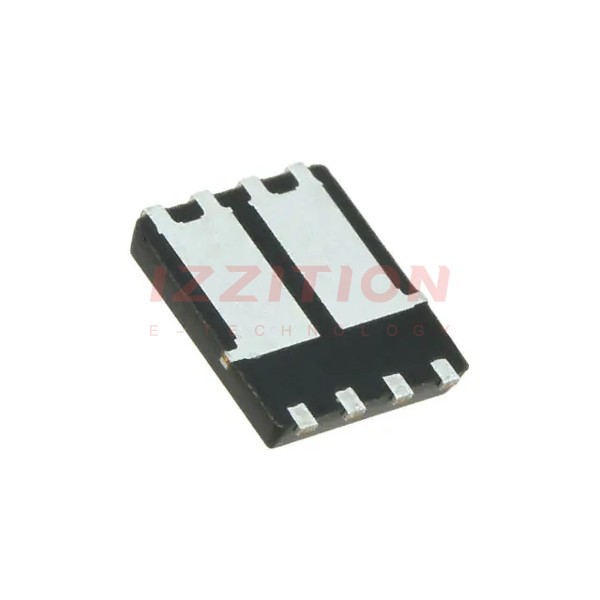

Infineon Technologies BSC072N03LDGATMA1
