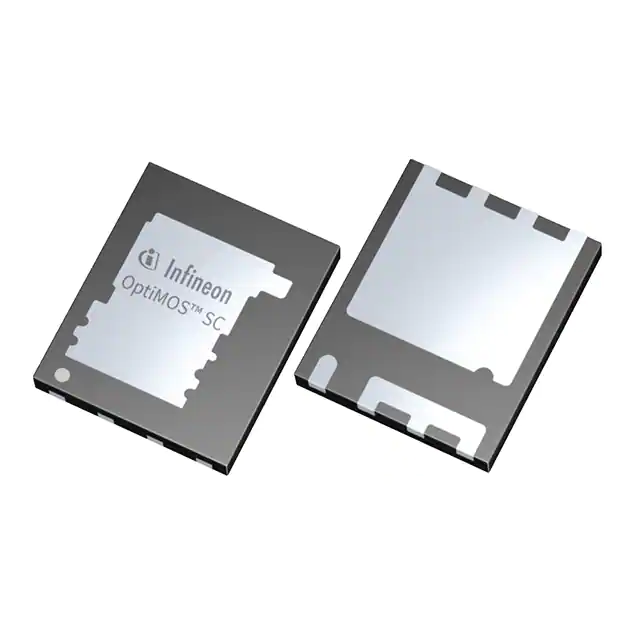

| Part Number | BSC070N10NS5SCATMA1 | BSC040N10NS5SCATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta), 82A (Tc) | 140A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 40A, 10V | 4mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 50µA | 3.8V @ 95µA |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V | 72 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2700 pF @ 50 V | 5300 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3W (Ta), 100W (Tc) | 3W (Ta), 167W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-WSON-8-2 | PG-WSON-8-2 |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN |
