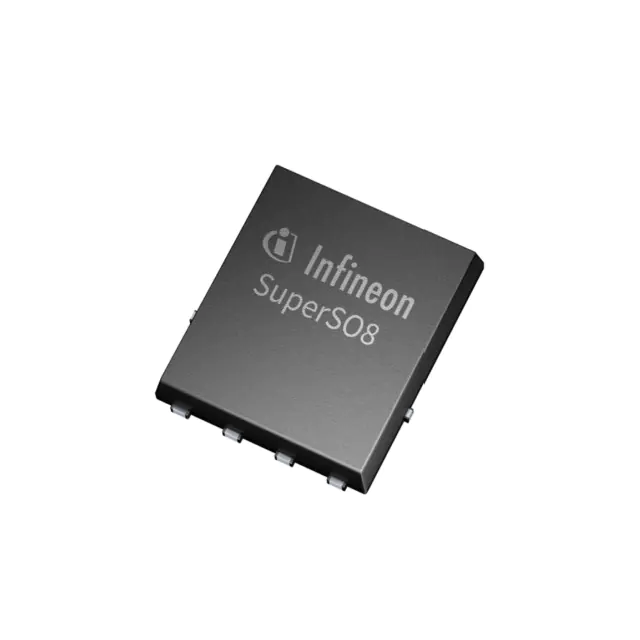

| Part Number | BSC0402NSATMA1 | BSC0902NSATMA1 | BSC0403NSATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | - | N-Channel | - |
| Technology | - | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | - | 30 V | - |
| Current - Continuous Drain (Id) @ 25°C | - | 24A (Ta), 100A (Tc) | - |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | - | 2.6mOhm @ 30A, 10V | - |
| Vgs(th) (Max) @ Id | - | 2.2V @ 250µA | - |
| Gate Charge (Qg) (Max) @ Vgs | - | 26 nC @ 10 V | - |
| Vgs (Max) | - | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1700 pF @ 15 V | - |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 2.5W (Ta), 48W (Tc) | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - |
| Mounting Type | - | Surface Mount | - |
| Supplier Device Package | - | PG-TDSON-8-6 | - |
| Package / Case | - | 8-PowerTDFN | - |
