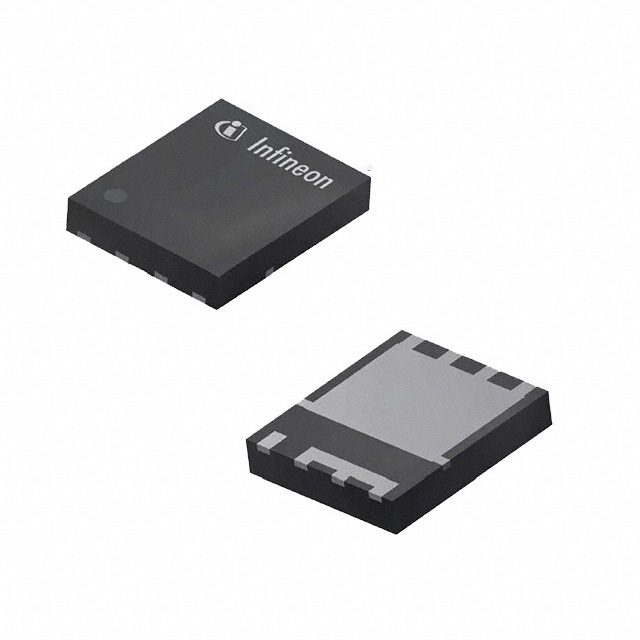

| Part Number | BSC021N08NS5ATMA1 | BSC061N08NS5ATMA1 | BSC026N08NS5ATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | 82A (Tc) | 23A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2.1mOhm @ 50A, 10V | 6.1mOhm @ 41A, 10V | 2.6mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 146µA | 3.8V @ 41µA | 3.8V @ 115µA |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 10 V | 33 nC @ 10 V | 92 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8600 pF @ 40 V | 2500 pF @ 40 V | 6800 pF @ 40 V |
| FET Feature | Standard | - | - |
| Power Dissipation (Max) | 214W (Tc) | 2.5W (Ta), 74W (Tc) | 2.5W (Ta), 156W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TSON-8-3 | PG-TDSON-8-7 | PG-TDSON-8-6 |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
