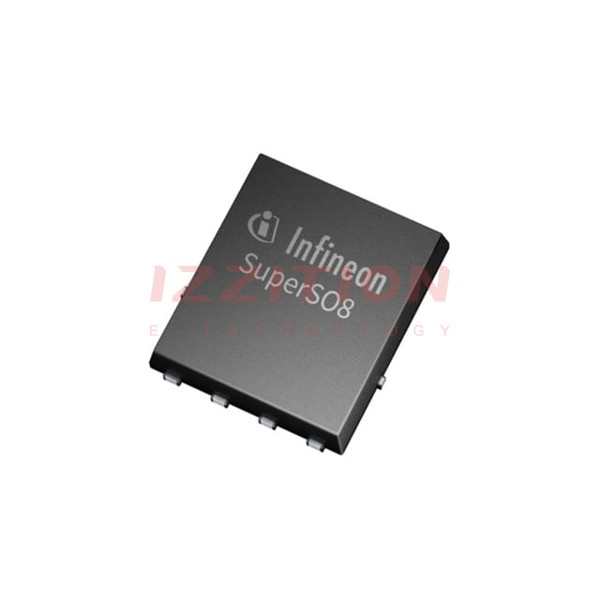

| Part Number | BSC019N04LSTATMA1 | BSC010N04LSTATMA1 | BSC014N04LSTATMA1 | BSC019N04LSATMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| FET Type | - | N-Channel | N-Channel | N-Channel |
| Technology | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta), 161A (Tc) | 39A (Ta), 100A (Tc) | 33A (Ta), 100A (Tc) | 27A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | - | 1mOhm @ 50A, 10V | 1.4mOhm @ 50A, 10V | 1.9mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | - | 2V @ 250µA | 2V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 133 nC @ 10 V | 85 nC @ 10 V | 41 nC @ 10 V |
| Vgs (Max) | - | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 9520 pF @ 20 V | 6020 pF @ 20 V | 2900 pF @ 20 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | - | 3W (Ta), 167W (Tc) | 3W (Ta), 115W (Tc) | 2.5W (Ta), 78W (Tc) |
| Operating Temperature | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | PG-TDSON-8 FL | PG-TDSON-8 FL | PG-TDSON-8-1 |
| Package / Case | - | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
