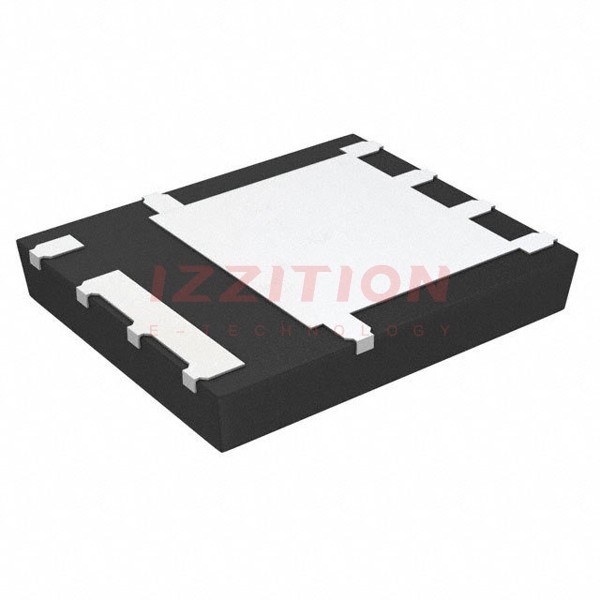

| Part Number | BSC010N04LSTATMA1 | BSC014N04LSTATMA1 | BSC019N04LSTATMA1 | BSC010N04LS6ATMA1 | BSC010N04LSATMA1 | BSC010N04LSCATMA1 | BSC010N04LSIATMA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | - | N-Channel | N-Channel | - | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | - | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | - | 40 V | 40 V | - | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 39A (Ta), 100A (Tc) | 33A (Ta), 100A (Tc) | 28A (Ta), 161A (Tc) | 40A (Ta), 100A (Tc) | 38A (Ta), 100A (Tc) | 282A (Tc) | 37A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | - | 4.5V, 10V | 4.5V, 10V | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1mOhm @ 50A, 10V | 1.4mOhm @ 50A, 10V | - | 1mOhm @ 50A, 10V | 1mOhm @ 50A, 10V | - | 1.05mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA | - | 2.3V @ 250µA | 2V @ 250µA | - | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 133 nC @ 10 V | 85 nC @ 10 V | - | 67 nC @ 4.5 V | 95 nC @ 10 V | - | 87 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | - | ±20V | ±20V | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9520 pF @ 20 V | 6020 pF @ 20 V | - | 4600 pF @ 20 V | 6800 pF @ 20 V | - | 6200 pF @ 20 V |
| FET Feature | - | - | - | - | - | - | Schottky Diode (Body) |
| Power Dissipation (Max) | 3W (Ta), 167W (Tc) | 3W (Ta), 115W (Tc) | - | 3W (Ta), 150W (Tc) | 2.5W (Ta), 139W (Tc) | - | 2.5W (Ta), 139W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | - | -55°C ~ 175°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | - | Surface Mount |
| Supplier Device Package | PG-TDSON-8 FL | PG-TDSON-8 FL | - | PG-TDSON-8-6 | PG-TDSON-8 FL | - | PG-TDSON-8 FL |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | - | 8-PowerTDFN | 8-PowerTDFN | - | 8-PowerTDFN |
