Please send RFQ , we will respond immediately.

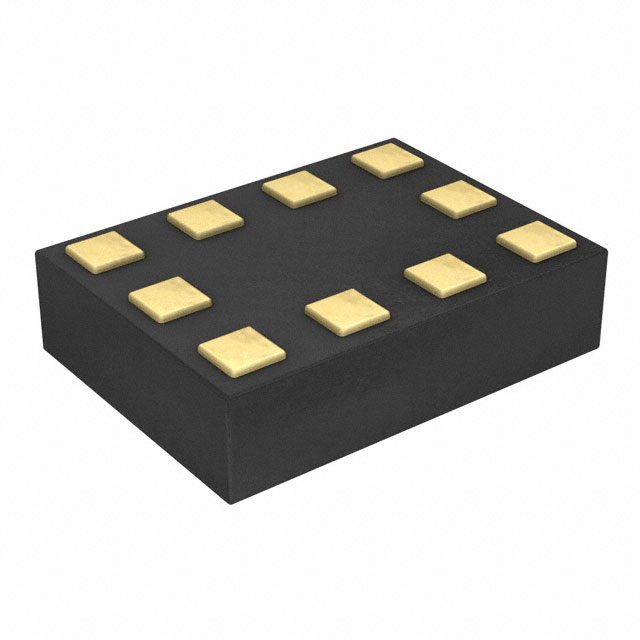

| Part Number | BGSA11GN10E6327XTSA1 | BGSA12GN10E6327XTSA1 | BGSA14GN10E6327XTSA1 | BGSA13GN10E6327XTSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Obsolete |
| RF Type | General Purpose | Cellular, 3G, 4G | Cellular, 3G, 4G | Cellular, 3G, 4G |
| Topology | - | - | - | - |
| Circuit | SPST | SPDT | SP4T | SP3T |
| Frequency Range | 100MHz ~ 5GHz | 100MHz ~ 5GHz | 100MHz ~ 5GHz | 100MHz ~ 5GHz |
| Isolation | 14dB | 20dB | 20dB | 17dB |
| Insertion Loss | 0.35dB | 0.39dB | 0.46dB | 0.63dB |
| Test Frequency | 2.69GHz | 2.69GHz | 2.69GHz | 2.69GHz |
| P1dB | - | - | - | - |
| IIP3 | 75dBm | - | - | - |
| Features | - | DC Blocked, Single Line Control | Single Line Control | DC Blocked, Single Line Control |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C |
| Package / Case | 10-XFQFN | 10-XFQFN | 10-XFQFN | 10-XFQFN |
| Supplier Device Package | PG-TSNP-10-1 | PG-TSNP-10-1 | PG-TSNP-10-1 | PG-TSNP-10-1 |
