| Part Number | BFR720L3RHE6327XTSA1 | BFR740L3RHE6327XTSA1 | BFR750L3RHE6327XTSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 4.7V | 4.7V | 4.7V |
| Frequency - Transition | 45GHz | 42GHz | 37GHz |
| Noise Figure (dB Typ @ f) | 0.5dB ~ 0.8dB @ 1.8GHz ~ 6Ghz | 0.5dB ~ 0.8dB @ 1.8GHz ~ 6Ghz | 0.6dB ~ 1.1dB @ 1.8GHz ~ 6GHz |
| Gain | 24dB | 24.5dB | 21dB |
| Power - Max | 80mW | 160mW | 360mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 13mA, 3V | 160 @ 25mA, 3V | 160 @ 60mA, 3V |
| Current - Collector (Ic) (Max) | 20mA | 30mA | 90mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

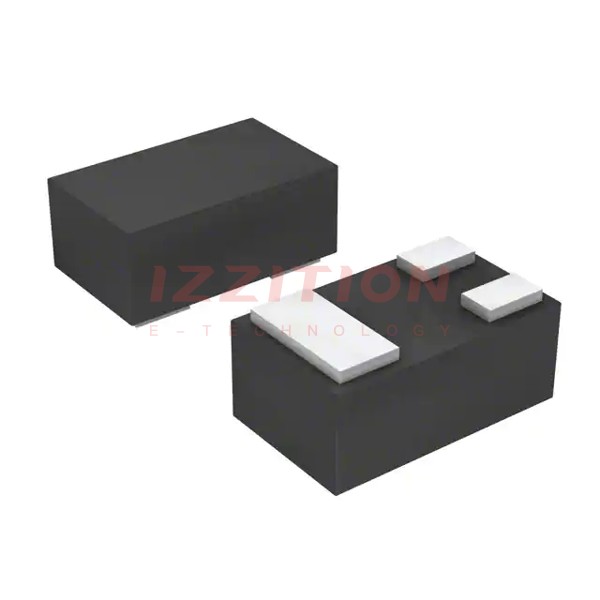

| Package / Case | SC-101, SOT-883 | SC-101, SOT-883 | SC-101, SOT-883 |
| Supplier Device Package | PG-TSLP-3 | PG-TSLP-3 | PG-TSLP-3 |
