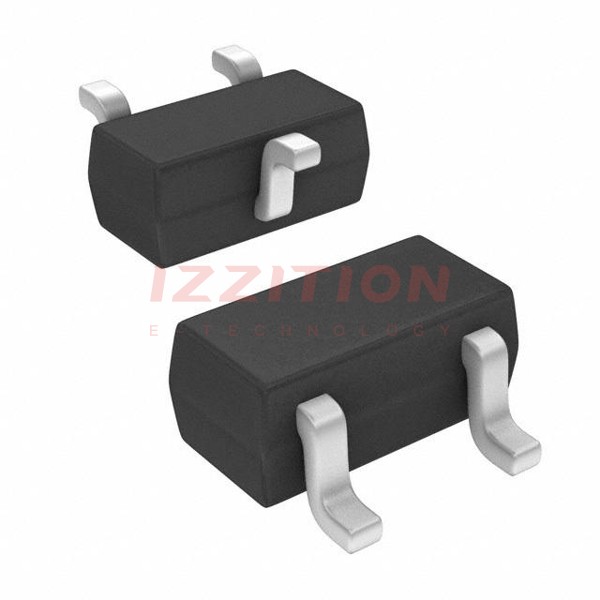

| Part Number | BFR 360T E6327 | BFR 380T E6327 | BFR 340T E6327 | BFR 360F E6327 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete |
| Transistor Type | NPN | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 9V | 9V | 9V | 9V |
| Frequency - Transition | 14GHz | 14GHz | 14GHz | 14GHz |
| Noise Figure (dB Typ @ f) | 1dB @ 1.8GHz | 1.1dB @ 1.8GHz | 1.15dB @ 1.8GHz | 1dB @ 1.8GHz |
| Gain | 13.5dB | 12.5dB | 15dB | 15.5dB |
| Power - Max | 210mW | 380mW | 60mW | 210mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 15mA, 3V | 60 @ 40mA, 3V | 60 @ 5mA, 3V | 90 @ 15mA, 3V |
| Current - Collector (Ic) (Max) | 35mA | 80mA | 10mA | 35mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-75, SOT-416 | SC-75, SOT-416 | SC-75, SOT-416 | SOT-723 |
| Supplier Device Package | PG-SC-75 | PG-SC-75 | PG-SC-75 | PG-TSFP-3 |
