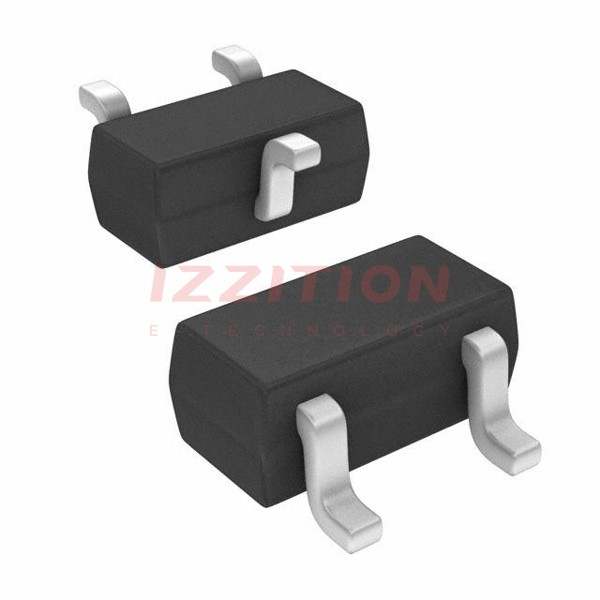

| Part Number | BFR 182T E6327 | BFR 183T E6327 | BFR 182W E6327 | BFR 181T E6327 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key |
| Transistor Type | NPN | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 12V | 12V | 12V | 12V |
| Frequency - Transition | 8GHz | 8GHz | 8GHz | 8GHz |
| Noise Figure (dB Typ @ f) | 1.2dB ~ 1.9dB @ 900MHz ~ 1.8GHz | 1.2dB ~ 2dB @ 900MHz ~ 1.8GHz | 0.9dB ~ 1.3dB @ 900MHz ~ 1.8GHz | 1.45dB ~ 1.8dB @ 900MHz ~ 1.8GHz |
| Gain | 20dB | 19.5dB | 19dB | 19.5dB |
| Power - Max | 250mW | 250mW | 250mW | 175mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 10mA, 8V | 50 @ 15mA, 8V | 70 @ 10mA, 8V | 50 @ 5mA, 8V |
| Current - Collector (Ic) (Max) | 35mA | 65mA | 35mA | 20mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-75, SOT-416 | SC-75, SOT-416 | SC-70, SOT-323 | SC-75, SOT-416 |
| Supplier Device Package | PG-SC-75 | PG-SC-75 | PG-SOT323 | PG-SC-75 |
