| Part Number | BFP650FH6327XTSA1 | BFP650H6327XTSA1 | BFP640FH6327XTSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 4.5V | 4.5V | 4.5V |
| Frequency - Transition | 42GHz | 37GHz | 40GHz |
| Noise Figure (dB Typ @ f) | 0.8dB ~ 1.9dB @ 1.8GHz ~ 6GHz | 0.8dB ~ 1.9dB @ 1.8GHz ~ 6GHz | 0.65dB ~ 1.2dB @ 1.8GHz ~ 6GHz |
| Gain | 11dB ~ 21.5dB | 10.5dB ~ 21.5dB | 23dB |
| Power - Max | 500mW | 500mW | 200mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 110 @ 80mA, 3V | 110 @ 80mA, 3V | 110 @ 30mA, 3V |
| Current - Collector (Ic) (Max) | 150mA | 150mA | 50mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

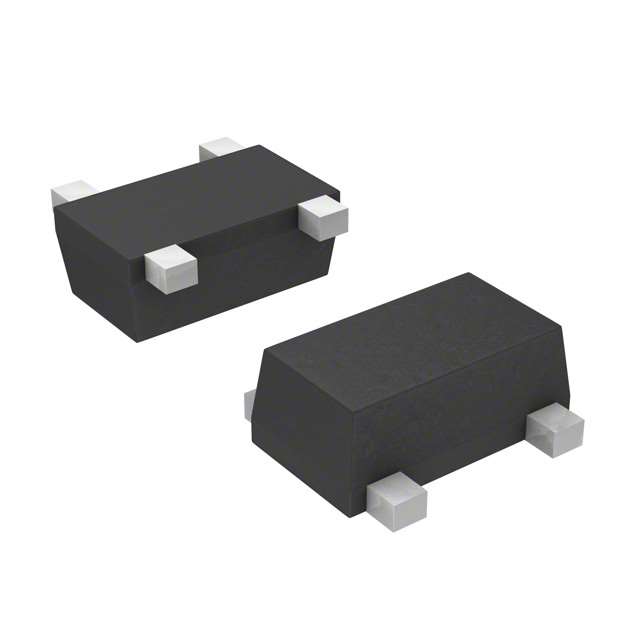

| Package / Case | 4-SMD, Flat Leads | SC-82A, SOT-343 | 4-SMD, Flat Leads |
| Supplier Device Package | 4-TSFP | PG-SOT343-3D | 4-TSFP |
