Please send RFQ , we will respond immediately.

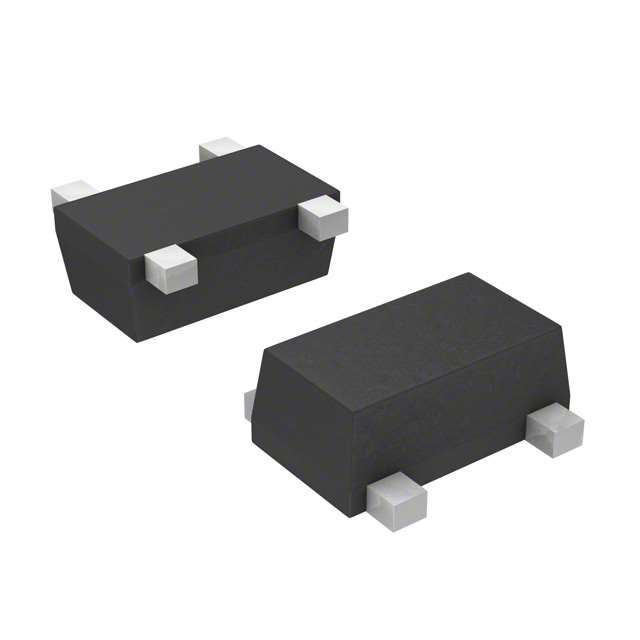

| Part Number | BFP 540F E6327 | BFP 740F E6327 | BFP 520F E6327 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 5V | 4.7V | 3.5V |
| Frequency - Transition | 30GHz | 42GHz | 45GHz |
| Noise Figure (dB Typ @ f) | 0.9dB ~ 1.4dB @ 1.8GHz | 0.5dB ~ 0.75dB @ 1.8GHz ~ 6GHz | 0.95dB @ 1.8GHz |
| Gain | 20dB | 27.5dB | 22.5dB |
| Power - Max | 250mW | 160mW | 100mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 20mA, 3.5V | 160 @ 25mA, 3V | 70 @ 20mA, 2V |
| Current - Collector (Ic) (Max) | 80mA | 30mA | 40mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, Flat Leads | 4-SMD, Flat Leads | 4-SMD, Flat Leads |
| Supplier Device Package | 4-TSFP | 4-TSFP | 4-TSFP |
