Infineon Technologies-BFP 405F E6327 - Transistors - Bipolar (BJT) - RF Product Specifications and Latest Quotes

Transistor Type:	NPN
Voltage - Collector Emitter Breakdown (Max):	5V
Frequency - Transition:	25GHz
Noise Figure (dB Typ @ f):	1.25dB @ 1.8GHz
Gain:	22.5dB
Power - Max:	55mW
DC Current Gain (hFE) (Min) @ Ic, Vce:	60 @ 5mA, 4V
Current - Collector (Ic) (Max):	12mA
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount

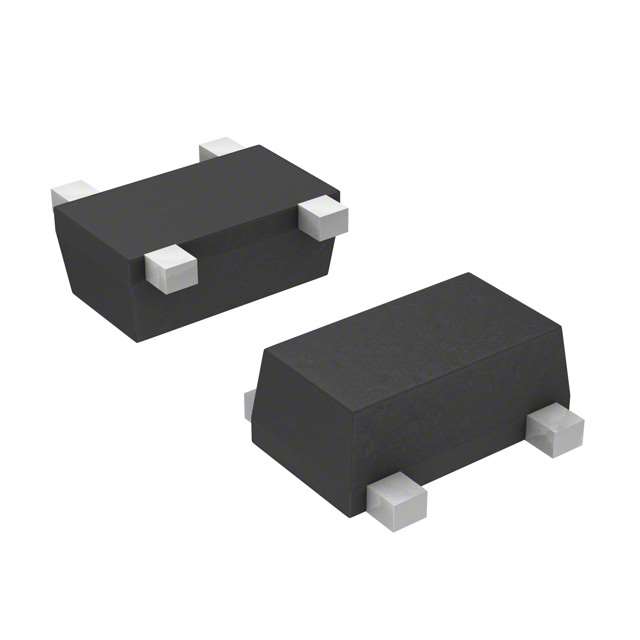

Package / Case:	4-SMD, Flat Leads
Supplier Device Package:	4-TSFP

Infineon Technologies BFP 405F E6327
