Infineon Technologies-BCX5316H6433XTMA1 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BCX5316H6433XTMA1	BCX5516H6433XTMA1	BCX5616H6433XTMA1	BCX5116H6433XTMA1	BCX5216H6433XTMA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Product Status	Not For New Designs	Not For New Designs	Not For New Designs	Not For New Designs	Not For New Designs
Transistor Type	PNP	NPN	NPN	PNP	PNP
Current - Collector (Ic) (Max)	1 A	1 A	1 A	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	80 V	60 V	80 V	45 V	60 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 2V	100 @ 150mA, 2V	100 @ 150mA, 2V	100 @ 150mA, 2V	100 @ 150mA, 2V
Power - Max	2 W	2 W	2 W	2 W	2 W
Frequency - Transition	125MHz	100MHz	100MHz	125MHz	125MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-243AA	TO-243AA	TO-243AA	TO-243AA	TO-243AA
Supplier Device Package	PG-SOT89	PG-SOT89	PG-SOT89	PG-SOT89	PG-SOT89

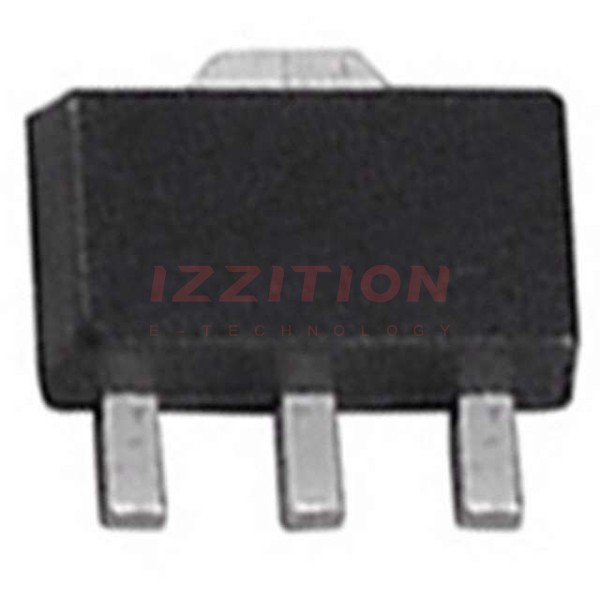

Infineon Technologies BCX5316H6433XTMA1

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 150mA, 2V
Power - Max:	2 W
Frequency - Transition:	125MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	PG-SOT89
