Please send RFQ , we will respond immediately.

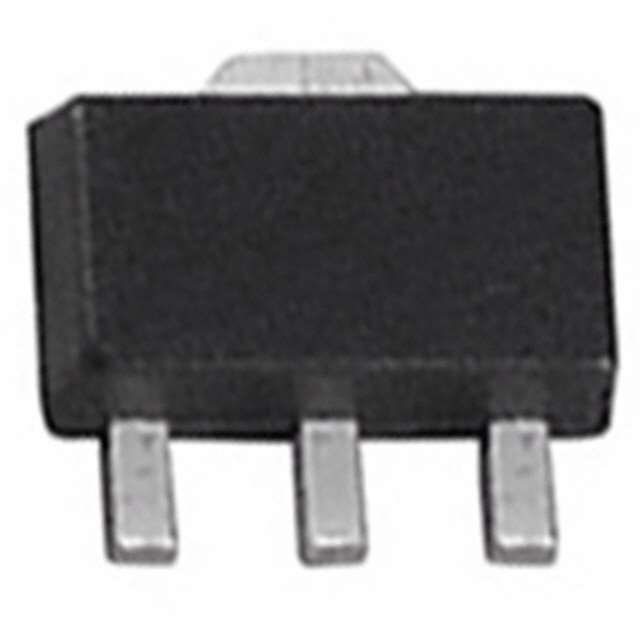

| Part Number | BCX5316H6327XTSA1 | BCX5416H6327XTSA1 | BCX5516H6327XTSA1 | BCX5616H6327XTSA1 | BCX5116H6327XTSA1 | BCX5216H6327XTSA1 | BCX5310H6327XTSA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Transistor Type | PNP | NPN | NPN | NPN | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V | 45 V | 60 V | 80 V | 45 V | 60 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 2V | 100 @ 150mA, 2V | 100 @ 150mA, 2V | 100 @ 150mA, 2V | 100 @ 150mA, 2V | 100 @ 150mA, 2V | 63 @ 150mA, 2V |
| Power - Max | 2 W | 2 W | 2 W | 2 W | 2 W | 2 W | 2 W |
| Frequency - Transition | 125MHz | 100MHz | 100MHz | 100MHz | 125MHz | 125MHz | 125MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | PG-SOT89 | PG-SOT89 | PG-SOT89 | PG-SOT89 | PG-SOT89 | PG-SOT89 | PG-SOT89 |
