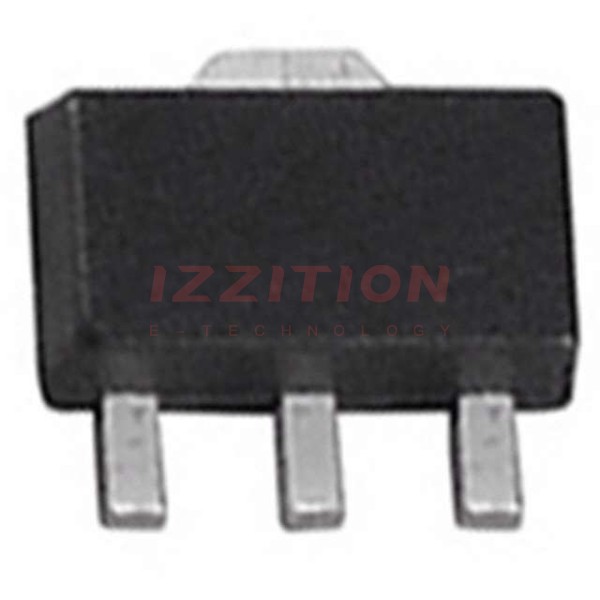

| Part Number | BCX52E6327HTSA1 | BCX55E6327HTSA1 | BCX53E6327HTSA1 | BCX42E6327HTSA1 | BCX51E6327HTSA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Not For New Designs | Obsolete |
| Transistor Type | PNP | NPN | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 1 A | 1 A | 1 A | 800 mA | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V | 60 V | 80 V | 125 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 900mV @ 30mA, 300mA | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 10µA | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 2V | 40 @ 150mA, 2V | 40 @ 150mA, 2V | 40 @ 200mA, 1V | 40 @ 150mA, 2V |
| Power - Max | 2 W | 2 W | 2 W | 330 mW | 2 W |
| Frequency - Transition | 125MHz | 100MHz | 125MHz | 150MHz | 125MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-236-3, SC-59, SOT-23-3 | TO-243AA |
| Supplier Device Package | PG-SOT89 | PG-SOT89 | PG-SOT89 | PG-SOT23 | PG-SOT89 |
