| Part Number | BCR196TE6327 | BCR198TE6327 | BCR196WE6327 | BCR196E6327 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| Transistor Type | - | - | PNP - Pre-Biased | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | - | - | 70 mA | 70 mA |
| Voltage - Collector Emitter Breakdown (Max) | - | - | 50 V | 50 V |
| Resistor - Base (R1) | - | - | 47 kOhms | 47 kOhms |
| Resistor - Emitter Base (R2) | - | - | 22 kOhms | 22 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | - | 50 @ 5mA, 5V | 50 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | - | - | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | - | - | 100nA (ICBO) | 100nA (ICBO) |
| Frequency - Transition | - | - | 150 MHz | 150 MHz |
| Power - Max | - | - | 250 mW | 200 mW |
| Mounting Type | - | - | Surface Mount | Surface Mount |

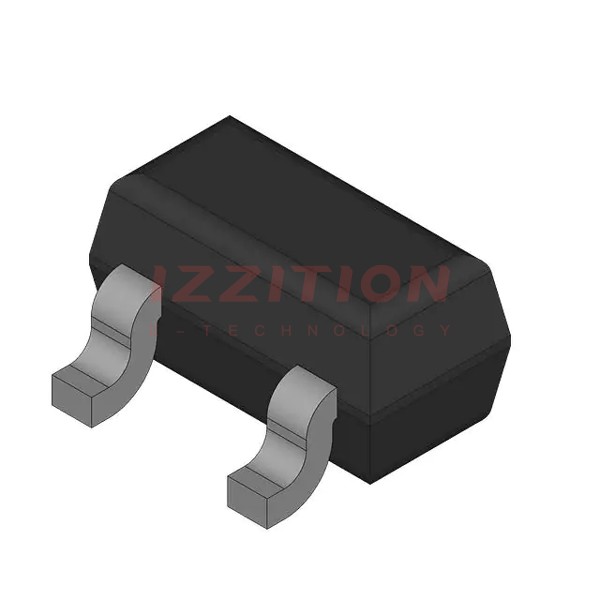

| Package / Case | - | - | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | - | - | PG-SOT323-3 | PG-SOT23-3-11 |
