Infineon Technologies-BCR108WH6433 - Transistors - Bipolar (BJT) - Single, Pre-Biased Product Specifications and Latest Quotes

Transistor Type:	NPN - Pre-Biased
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Resistor - Base (R1):	2.2 kOhms
Resistor - Emitter Base (R2):	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	70 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic:	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max):	100nA (ICBO)
Frequency - Transition:	170 MHz
Power - Max:	250 mW
Mounting Type:	Surface Mount

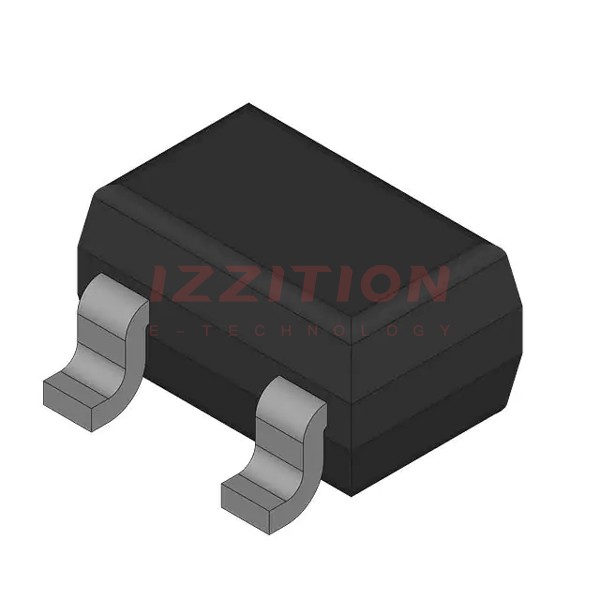

Package / Case:	SC-70, SOT-323
Supplier Device Package:	PG-SOT323-3

Infineon Technologies BCR108WH6433
