| Part Number | BCR 135L3 E6327 | BCR 139L3 E6327 | BCR 185L3 E6327 | BCR 133L3 E6327 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Transistor Type | NPN - Pre-Biased | NPN - Pre-Biased | PNP - Pre-Biased | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 10 kOhms | 22 kOhms | 10 kOhms | 10 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms | - | 47 kOhms | 10 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 5mA, 5V | 120 @ 5mA, 5V | 70 @ 5mA, 5V | 30 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| Frequency - Transition | 150 MHz | 150 MHz | 200 MHz | 130 MHz |
| Power - Max | 250 mW | 250 mW | 250 mW | 250 mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

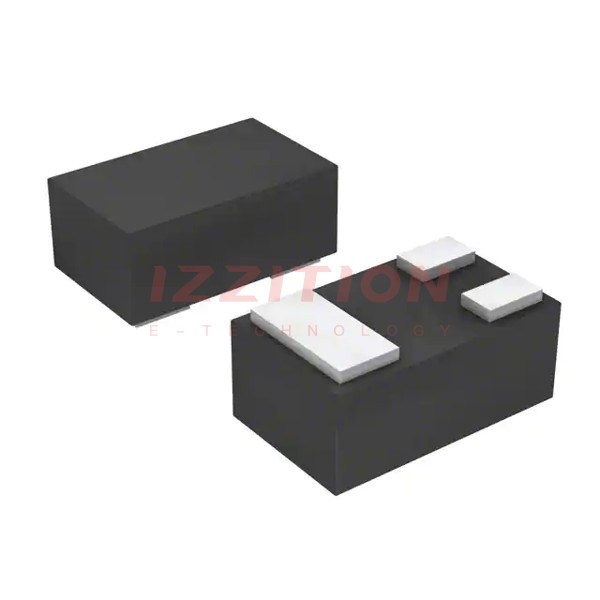

| Package / Case | SC-101, SOT-883 | SC-101, SOT-883 | SC-101, SOT-883 | SC-101, SOT-883 |
| Supplier Device Package | PG-TSLP-3-4 | PG-TSLP-3-4 | PG-TSLP-3-4 | PG-TSLP-3-4 |
