| Part Number | BCM89335L2CUBGT | BCM88335L2CUBGT |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Type | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | Bluetooth, WiFi | Bluetooth, WiFi |
| Protocol | 802.11ac, Bluetooth v4.1 | 802.11a/b/g/n, Bluetooth v4.1 |
| Modulation | 4DQPSK, 8DPSK, GFSK | 8DPSK, DQPSK, GFSK |
| Frequency | 2.4GHz | 2.4GHz |
| Data Rate (Max) | 433.3Mbps | - |
| Power - Output | 13dBm | 13dBm |
| Sensitivity | -95.5dBm | -98dBm |
| Memory Size | 640kB ROM, 768kB SRAM | - |
| Serial Interfaces | I²S, SPI, UART | I²S, SPI, UART |
| GPIO | 9 | 9 |
| Voltage - Supply | 3V ~ 4.8V | 1.2V ~ 3.3V |
| Current - Receiving | 110mA | - |
| Current - Transmitting | 340mA | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |

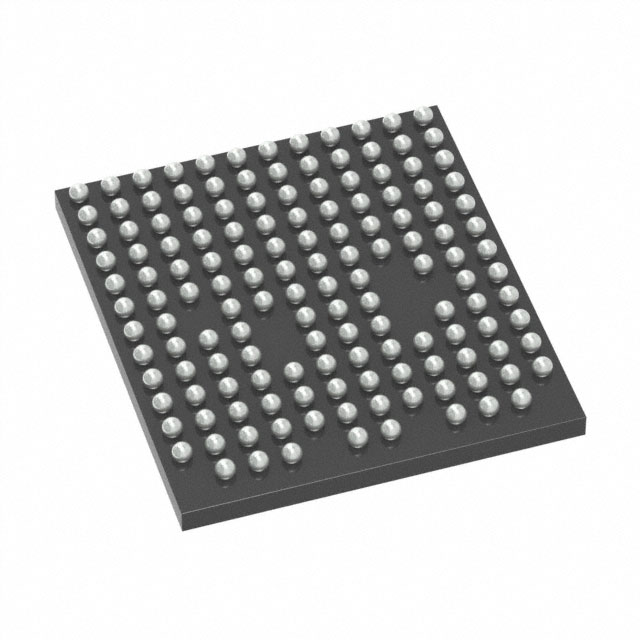

| Package / Case | 145-UFBGA, WLBGA | 145-UFBGA, WLBGA |
| Supplier Device Package | 145-WLBGA (4.87x5.41) | 145-WLBGA (4.87x5.41) |
