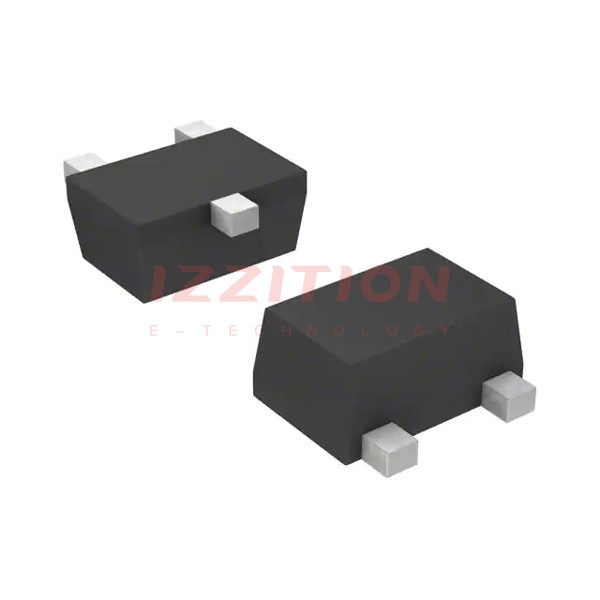

| Part Number | BC 847BF E6327 | BC 847BT E6327 | BC 857BF E6327 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Discontinued at Digi-Key | Obsolete |
| Transistor Type | NPN | NPN | PNP |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V | 45 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA | 600mV @ 5mA, 100mA | 650mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) | 15nA (ICBO) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V | 200 @ 2mA, 5V | 220 @ 2mA, 5V |
| Power - Max | 250 mW | 330 mW | 250 mW |
| Frequency - Transition | 250MHz | 250MHz | 250MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-723 | SC-75, SOT-416 | SOT-723 |
| Supplier Device Package | PG-TSFP-3-1 | PG-SC-75 | PG-TSFP-3-1 |
