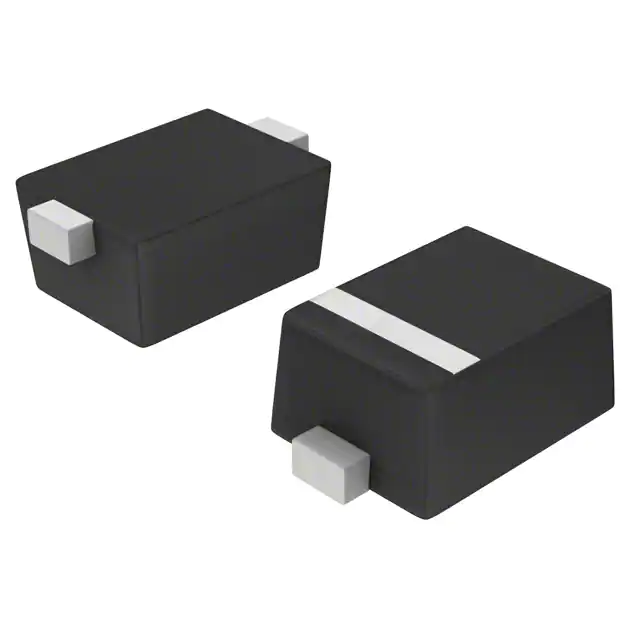

| Part Number | BBY5702WH6327XTSA1 | BBY5705WH6327XTSA1 | BBY5802WH6327XTSA1 | BBY5102WH6327XTSA1 | BBY5202WH6327XTSA1 | BBY5302WH6327XTSA1 | BBY5502WH6327XTSA1 | BBY5602WH6327XTSA1 | BBY5702VH6327XTSA1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Capacitance @ Vr, F | 5.5pF @ 4V, 1MHz | 5.5pF @ 4V, 1MHz | 5.5pF @ 6V, 1MHz | 3.7pF @ 4V, 1MHz | 1.45pF @ 4V, 1MHz | 3.1pF @ 3V, 1MHz | 6.5pF @ 10V, 1MHz | 12.1pF @ 4V, 1MHz | 5.5pF @ 4V, 1MHz |
| Capacitance Ratio | 4.5 | 4.5 | 3.5 | 2.2 | 2.1 | 2.6 | 3 | 3.3 | 4.5 |
| Capacitance Ratio Condition | C1/C4 | C1/C4 | C1/C4 | C1/C4 | C1/C4 | C1/C3 | C2/C10 | C1/C3 | C1/C4 |
| Voltage - Peak Reverse (Max) | 10 V | 10 V | 10 V | 7 V | 7 V | 6 V | 16 V | 10 V | 10 V |
| Diode Type | Single | 1 Pair Common Cathode | Single | Single | Single | Single | Single | Single | Single |
| Q @ Vr, F | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-80 | SC-70, SOT-323 | SC-80 | SC-80 | SC-80 | SC-80 | SC-80 | SC-80 | SC-79, SOD-523 |
| Supplier Device Package | SCD-80 | PG-SOT323 | SCD-80 | SCD-80 | SCD-80 | SCD-80 | SCD-80 | SCD-80 | PG-SC79-2 |
