Please send RFQ , we will respond immediately.

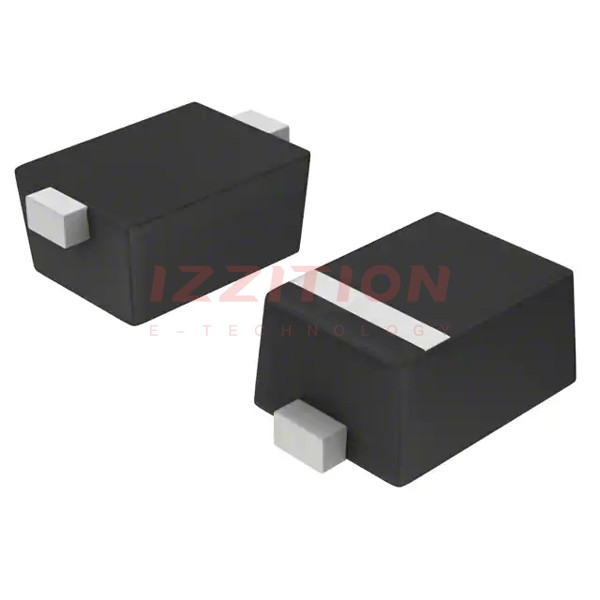

| Part Number | BBY 55-02W E6327 | BBY 56-02W E6327 | BBY 58-02W E6327 | BBY 57-02W E6327 | BBY 51-02W E6327 | BBY 52-02W E6327 | BBY 53-02W E6327 | BBY 55-02V E6327 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance @ Vr, F | 6.5pF @ 10V, 1MHz | 12.1pF @ 4V, 1MHz | 5.5pF @ 6V, 1MHz | 5.5pF @ 4V, 1MHz | 3.7pF @ 4V, 1MHz | 1.45pF @ 4V, 1MHz | 3.1pF @ 3V, 1MHz | 6.5pF @ 10V, 1MHz |
| Capacitance Ratio | 3 | 3.3 | 3.5 | 4.5 | 2.2 | 2.1 | 2.6 | 3 |
| Capacitance Ratio Condition | C2/C10 | C1/C3 | C1/C4 | C1/C4 | C1/C4 | C1/C4 | C1/C3 | C2/C10 |
| Voltage - Peak Reverse (Max) | 16 V | 10 V | 10 V | 10 V | 7 V | 7 V | 6 V | 16 V |
| Diode Type | Single | Single | Single | Single | Single | Single | Single | Single |
| Q @ Vr, F | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-80 | SC-80 | SC-80 | SC-80 | SC-80 | SC-80 | SC-80 | SC-79, SOD-523 |
| Supplier Device Package | SCD-80 | SCD-80 | SCD-80 | SCD-80 | SCD-80 | SCD-80 | SCD-80 | PG-SC79-2 |
