| Part Number | BAW156 | BAW56 |
|---|---|---|
| Manufacturer | Infineon Technologies | Fairchild Semiconductor |
| Product Status | Obsolete | Active |
| Diode Configuration | 1 Pair Common Anode | 1 Pair Common Anode |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 85 V | 85 V |
| Current - Average Rectified (Io) (per Diode) | 140mA (DC) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 50 mA | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3 µs | 6 ns |
| Current - Reverse Leakage @ Vr | 5 nA @ 75 V | 2.5 µA @ 70 V |
| Operating Temperature - Junction | -65°C ~ 150°C | 150°C |
| Mounting Type | Surface Mount | Surface Mount |

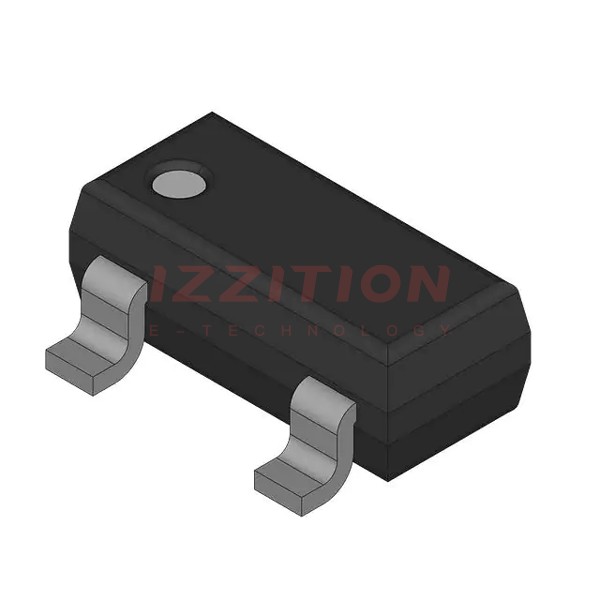

| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT23-3 (TO-236) | SOT-23-3 |
