Infineon Technologies-BAV 99T E6327 - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	80 V
Current - Average Rectified (Io) (per Diode):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	150 nA @ 70 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	SC-75, SOT-416
Supplier Device Package:	PG-SC-75

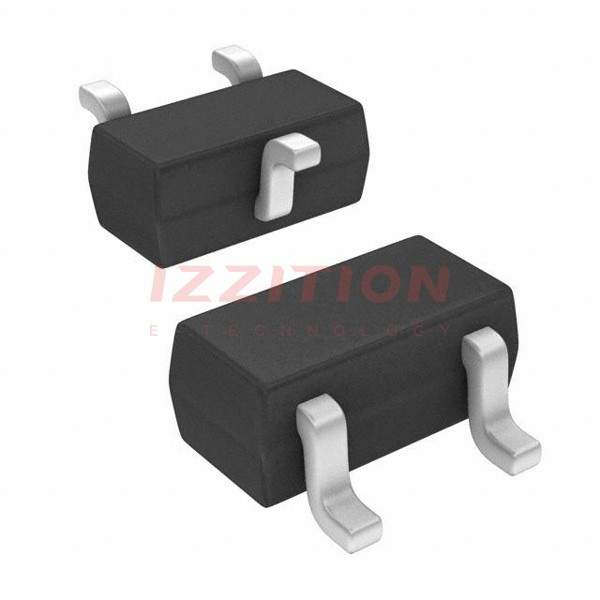

Infineon Technologies BAV 99T E6327
