Please send RFQ , we will respond immediately.

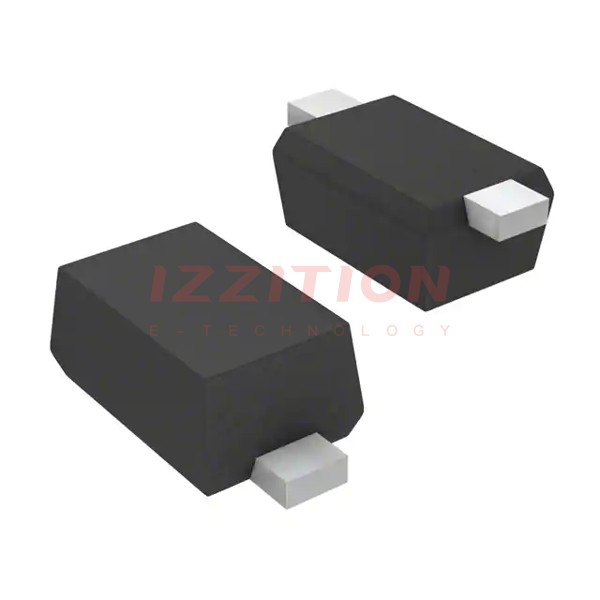

| Part Number | BAT6402VH6327XTSA1 | BAT6402WH6327XTSA1 | BAT6202VH6327XTSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V |
| Current - Average Rectified (Io) | 250mA (DC) | 120mA | 20mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 100 mA | 750 mV @ 100 mA | 1 V @ 2 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns | 5 ns | - |
| Current - Reverse Leakage @ Vr | 2 µA @ 30 V | 2 µA @ 30 V | 10 µA @ 40 V |
| Capacitance @ Vr, F | 6pF @ 0V, 1MHz | 6pF @ 1V, 1MHz | 0.6pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-79, SOD-523 | SC-80 | SC-79, SOD-523 |
| Supplier Device Package | PG-SC79-2-1 | SCD-80 | PG-SC79-2-1 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) |
