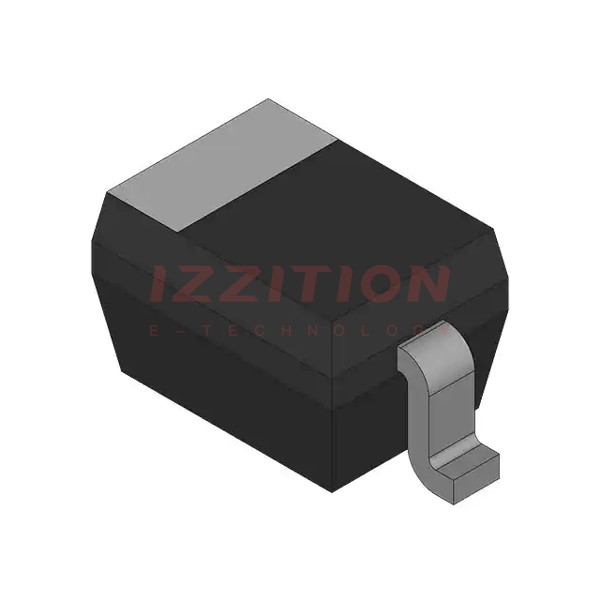

Infineon Technologies-BAT54-03WE6327 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	800 mV @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	5 ns
Current - Reverse Leakage @ Vr:	2 µA @ 25 V
Capacitance @ Vr, F:	10pF @ 1V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SC-76, SOD-323
Supplier Device Package:	PG-SOD323-2
Operating Temperature - Junction:	150°C (Max)

Infineon Technologies BAT54-03WE6327
