Infineon Technologies-BAT1502LSE6433XTMA1 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	4 V
Current - Average Rectified (Io):	110mA (DC)
Voltage - Forward (Vf) (Max) @ If:	410 mV @ 10 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	5 µA @ 1 V
Capacitance @ Vr, F:	350pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	PG-TSSLP-2-3
Operating Temperature - Junction:	-55°C ~ 150°C

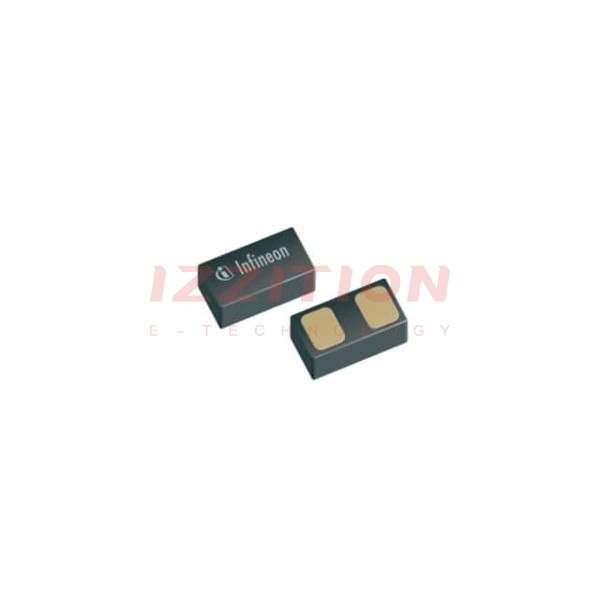

Infineon Technologies BAT1502LSE6433XTMA1
