Please send RFQ , we will respond immediately.

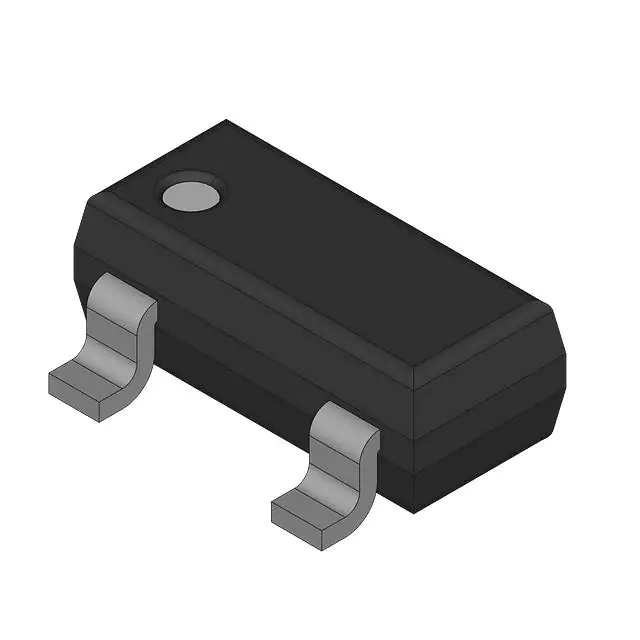

| Part Number | BAS70-04E6327 | BAS70-04TE6327 | BAS70-04WE6327 | BAS70-06E6327 | BAS70-05E6327 | BAS70-07E6327 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Configuration | 1 Pair Series Connection | - | 1 Pair Series Connection | 1 Pair Common Anode | 1 Pair Common Cathode | 2 Independent |
| Diode Type | Schottky | - | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 70 V | - | 70 V | 70 V | 70 V | 70 V |
| Current - Average Rectified (Io) (per Diode) | 70mA (DC) | - | 70mA (DC) | 70mA (DC) | 70mA (DC) | 70mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 15 mA | - | 1 V @ 15 mA | 1 V @ 15 mA | 1 V @ 15 mA | 1 V @ 15 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | - | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 100 ps | - | 100 ps | 100 ps | 100 ps | 100 ps |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V | - | 100 nA @ 50 V | 100 nA @ 50 V | 100 nA @ 50 V | 100 nA @ 50 V |
| Operating Temperature - Junction | 150°C | - | 150°C | 150°C | 150°C | 150°C |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | - | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-253-4, TO-253AA |
| Supplier Device Package | PG-SOT23 | - | PG-SOT323-3 | PG-SOT23 | PG-SOT23-3-11 | PG-SOT143-4 |
