Please send RFQ , we will respond immediately.

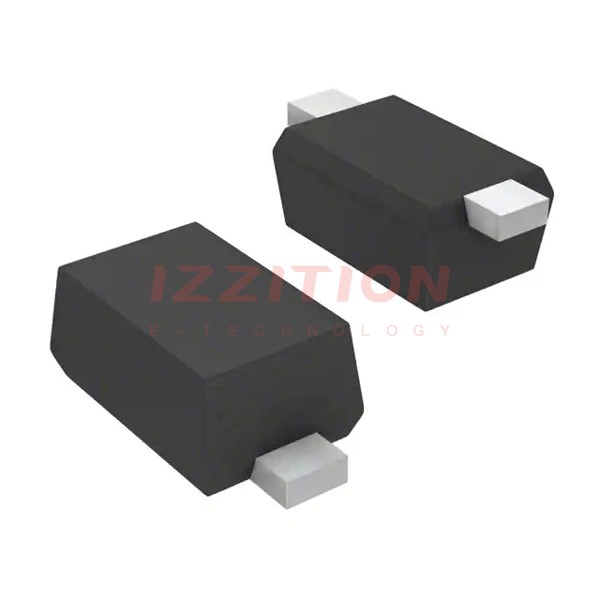

| Part Number | BAR 65-02V E6327 | BAR 67-02V E6327 | BAR 63-02V E6327 | BAR 64-02V E6327 | BAR 65-02L E6327 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | PIN - Single | PIN - Single | PIN - Single | PIN - Single | PIN - Single |
| Voltage - Peak Reverse (Max) | 30V | 150V | 50V | 150V | 30V |
| Current - Max | 100 mA | 200 mA | 100 mA | 100 mA | 100 mA |
| Capacitance @ Vr, F | 0.8pF @ 3V, 1MHz | 0.55pF @ 5V, 1MHz | 0.3pF @ 5V, 1MHz | 0.35pF @ 20V, 1MHz | 0.8pF @ 3V, 1MHz |
| Resistance @ If, F | 900mOhm @ 10mA, 100MHz | 1Ohm @ 10mA, 100MHz | 1Ohm @ 10mA, 100MHz | 1.35Ohm @ 100mA, 100MHz | 900mOhm @ 10mA, 100MHz |
| Power Dissipation (Max) | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Package / Case | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 | SOD-882 |
| Supplier Device Package | PG-SC79-2 | PG-SC79-2 | PG-SC79-2 | PG-SC79-2 | PG-TSLP-2-1 |
