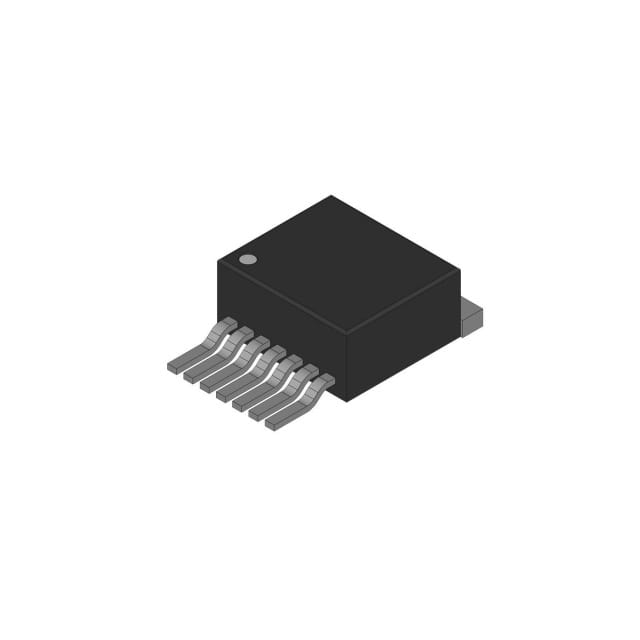

| Part Number | AUIRLZ44ZSTRL | AUIRFZ44ZSTRL |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | - | N-Channel |
| Technology | - | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 51A (Tc) | 51A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | - | 13.9mOhm @ 31A, 10V |
| Vgs(th) (Max) @ Id | - | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 43 nC @ 10 V |
| Vgs (Max) | ±16V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1420 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 80W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | - | D2PAK |
| Package / Case | - | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
